Current Products

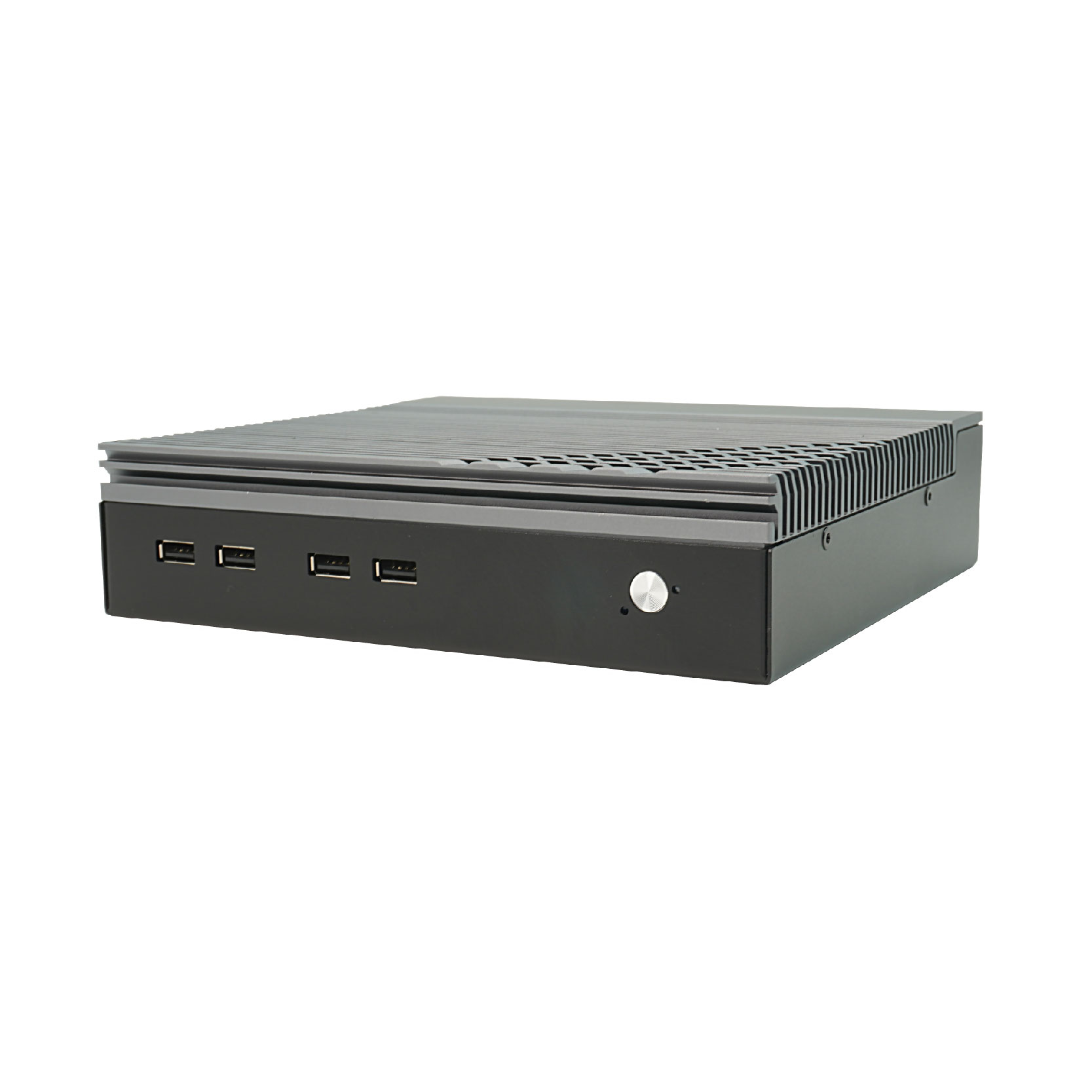

IPC030-1215U
Fanless mini pc Intel I3 CPU
Specifications:

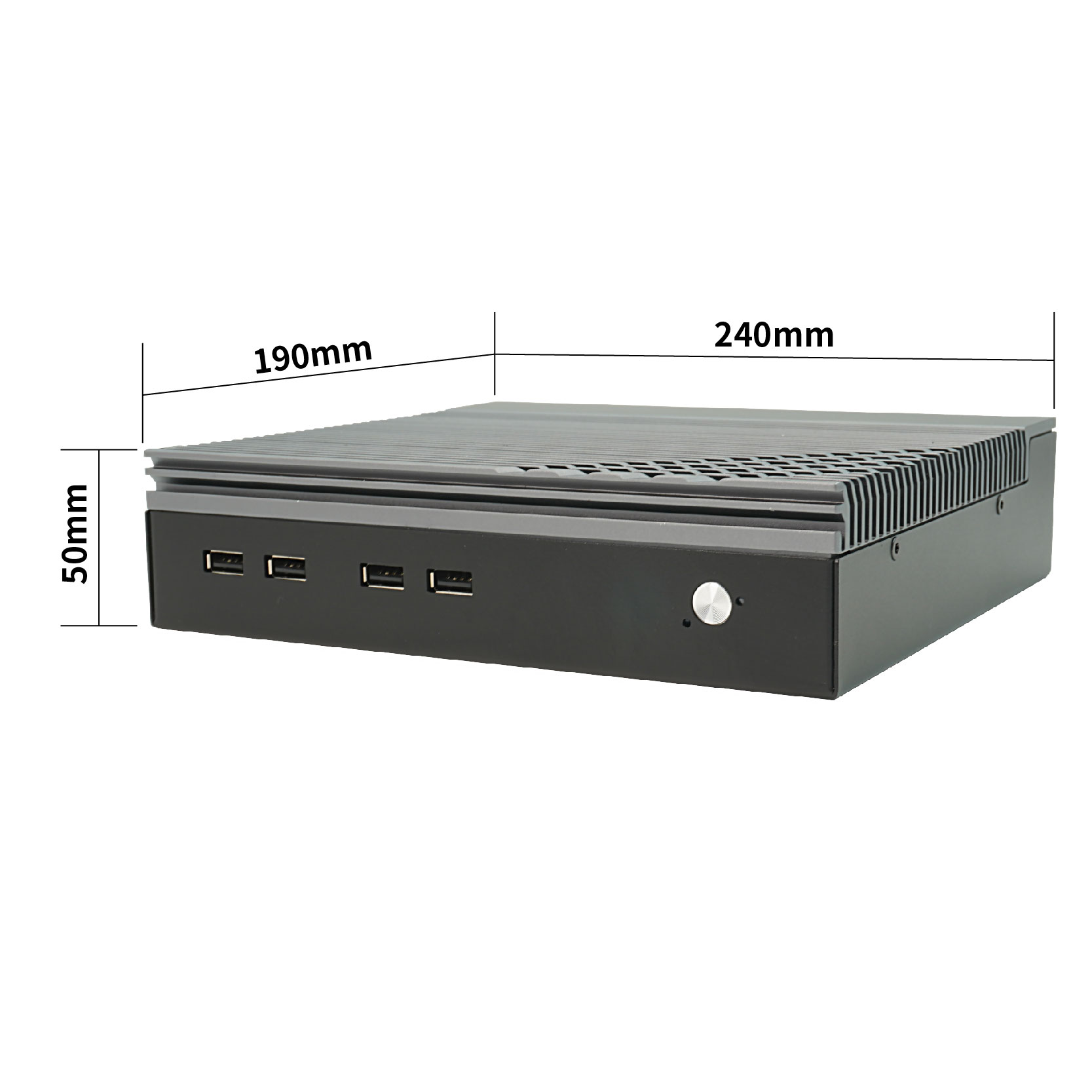

Size : 240*190*50mm
CPU : i3-1215U 6 core
Graphics : Intel UHD Graphics
Memory : DDR4 8GB
Storage : SSD 128GB
OS : Microsoft Windows 11(64bit)

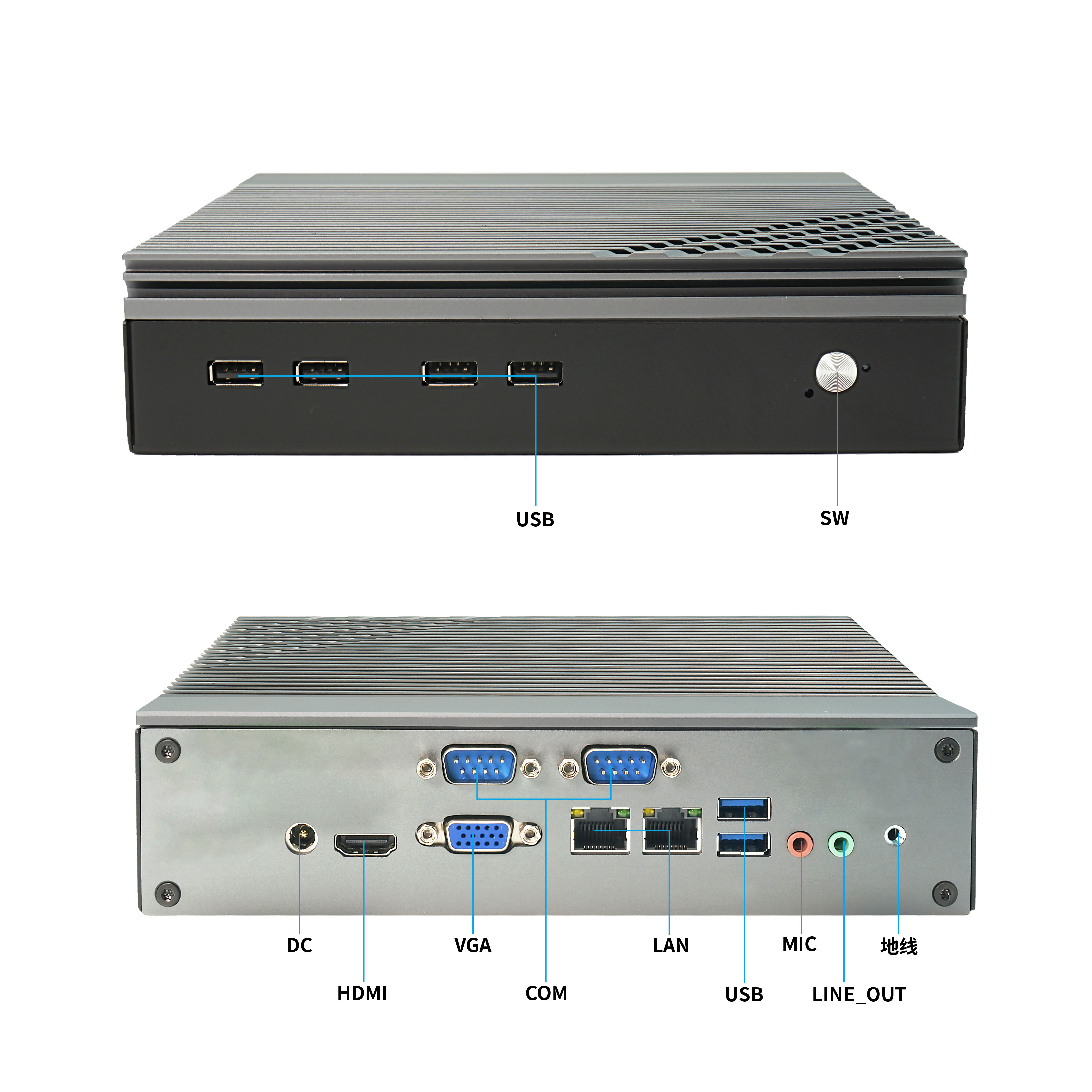

Interface Port : HDMI 1 port
4*USB2.0, 2*USB3.0
Cooling System : Fanless Type
Operation Hours : 24hrs x 7days
Power supply : 200VAC 50Hz
Type : industrial Grade (24/7)
SATA : 1*SATA3.0 HDD slot
Expansion : 1*M.2 NVMe 128gb upgrade to 2TB
BIOS : AMI UEFI BIOS
Support customization in BIOS
RJ45 : 2*Gigabit Ethernet interface, RJ45
RS232 : 2*RS232 Serial COM ports (Optional 2*RS485)
Audio : 1*Microphone 3.5mm jack+1*Speaker jack
GPIO : 1*8 bit way GPIO (Optional)
External switch : 1*External power switch (Optional)
Output 1 : 1*Standard VGA interface
Output 2 : 1*HDMI interface
Multiple Display : "Display can choose:
1*HDMI interface, support resolution 3840*2160p + 1*VGA standard interface,
support resolution 1920*1080p"
Power on Support auto power on when electricity returns
PXE Support PXE boot without SSD
Material Full aluminium alloy case
Heat sink Passive cooling without fan
Installation method Support mounting on wall or install inside KioSk terminal products
IPC030-1235U
Fanless mini pc Intel I5 CPU
Specifications:
Size : 240*190*50mm
CPU : i5-1235U 10 core
Graphics : Iris Xe Graphics
Memory : DDR4 8GB
Storage : Solid State Drive (SSD) 128GB
OS : Microsoft Windows 11(64bit)
Net working : Gigabit Ethernet 10/100/1000 @1port
Interface Port : HDMI 1 port
4*USB2.0, 2*USB3.0
Cooling System : Fanless Type
Operation Hours : 24hrs x 7days
Power supply : 200VAC 50Hz
Warranty : 3yrs
Type : industrial Grade (24/7)
SATA : 1*SATA3.0 HDD slot
Expansion : 1*M.2 NVMe 128gb upgrade to 2TB
BIOS : AMI UEFI BIOS Support customization in BIOS
RJ45 : 2*Gigabit Ethernet interface, RJ45
RS232 : 2*RS232 Serial COM ports (Optional 2*RS485)
Audio : 1*Microphone 3.5mm jack+1*Speaker jack
GPIO : 1*8 bit way GPIO (Optional)
External switch : 1*External power switch (Optional)
Output 1 : 1*Standard VGA interface
Output 2 : 1*HDMI interface
Multiple Display : "Display can choose:
1*HDMI interface, support resolution 3840*2160p + 1*VGA standard interface,
support resolution 1920*1080p"
Power on : Support auto power on when electricity returns
PXE : Support PXE boot without SSD
Material Full aluminium alloy case
Heat sink Passive cooling without fan
Installation method Support mounting on wall or install inside KioSk terminal products

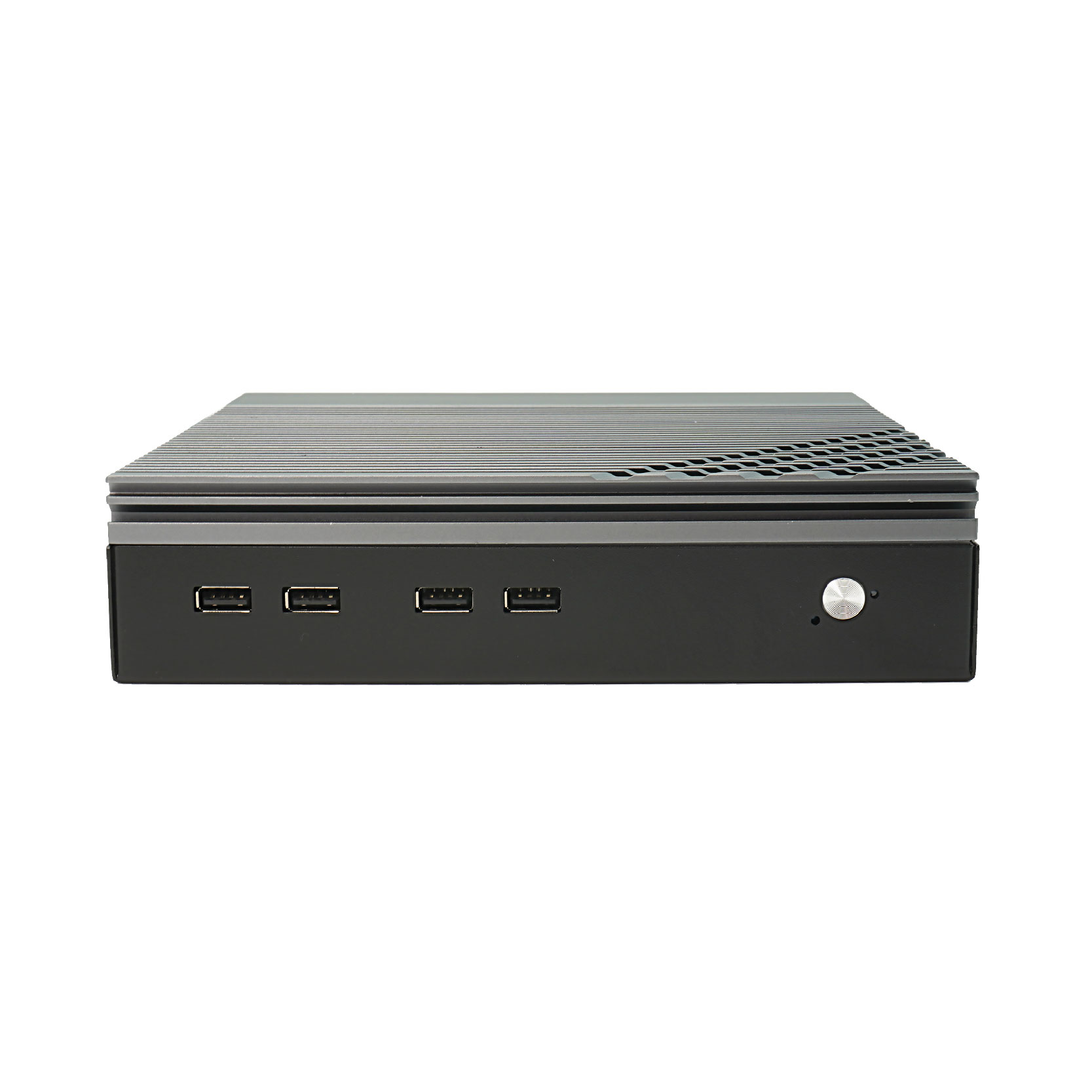

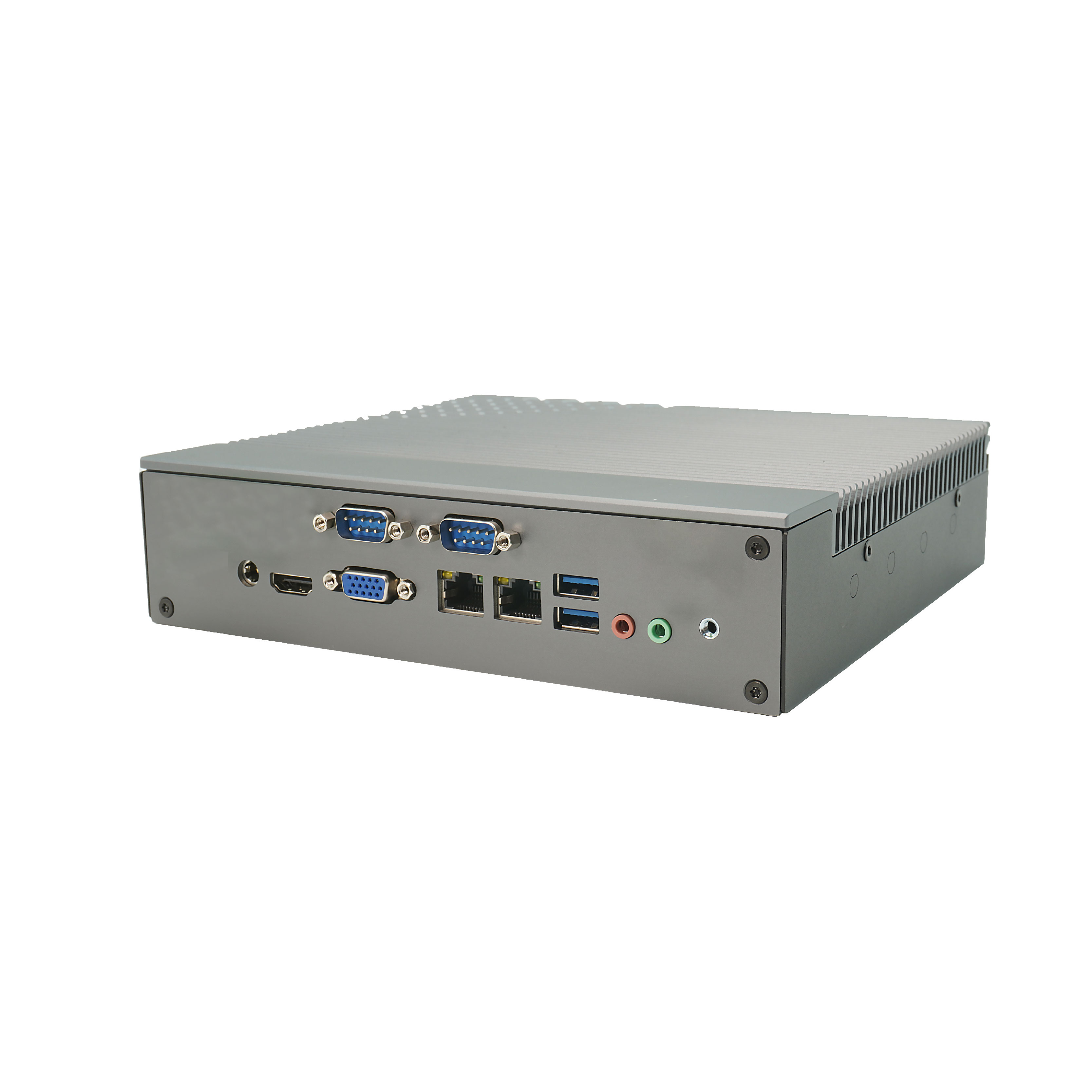

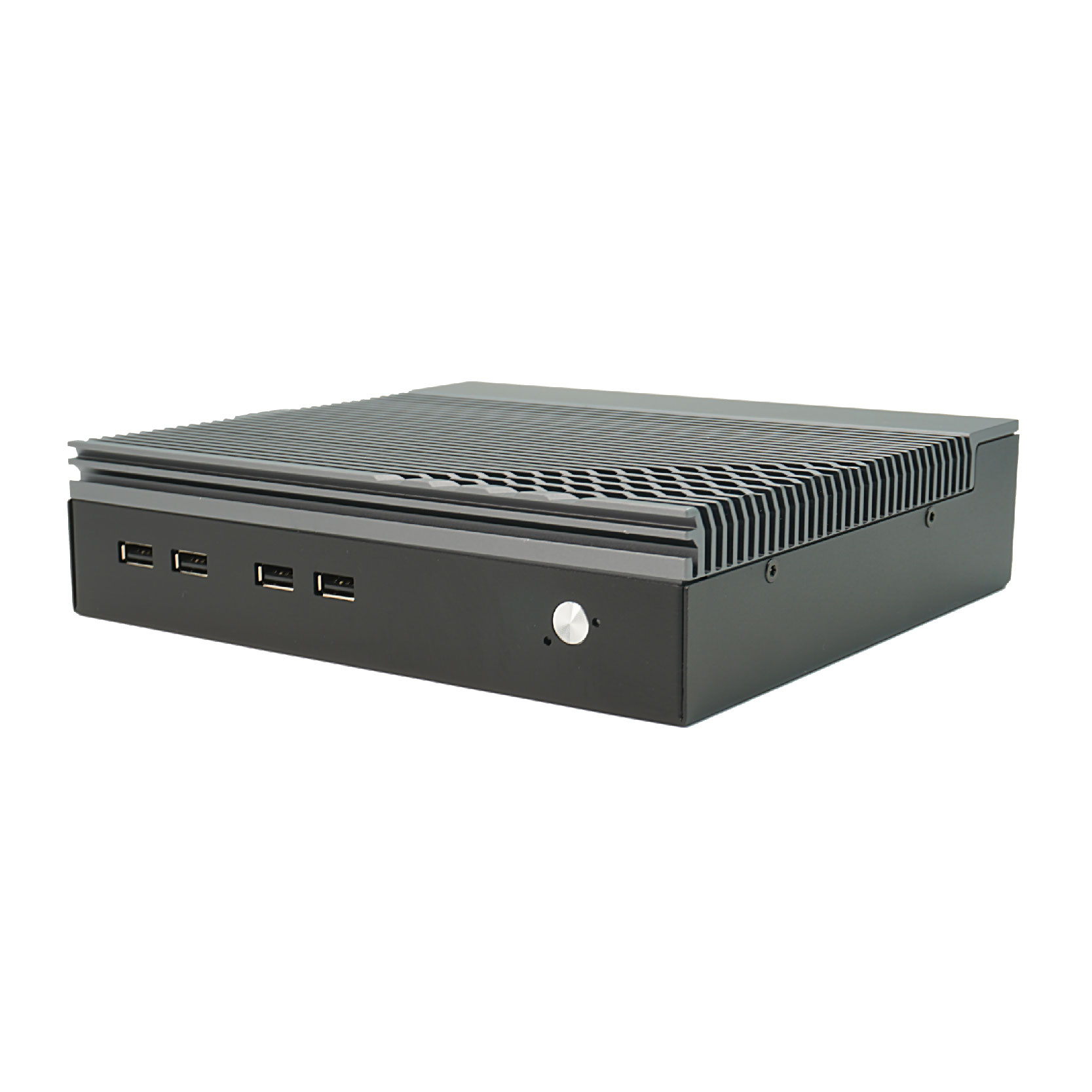

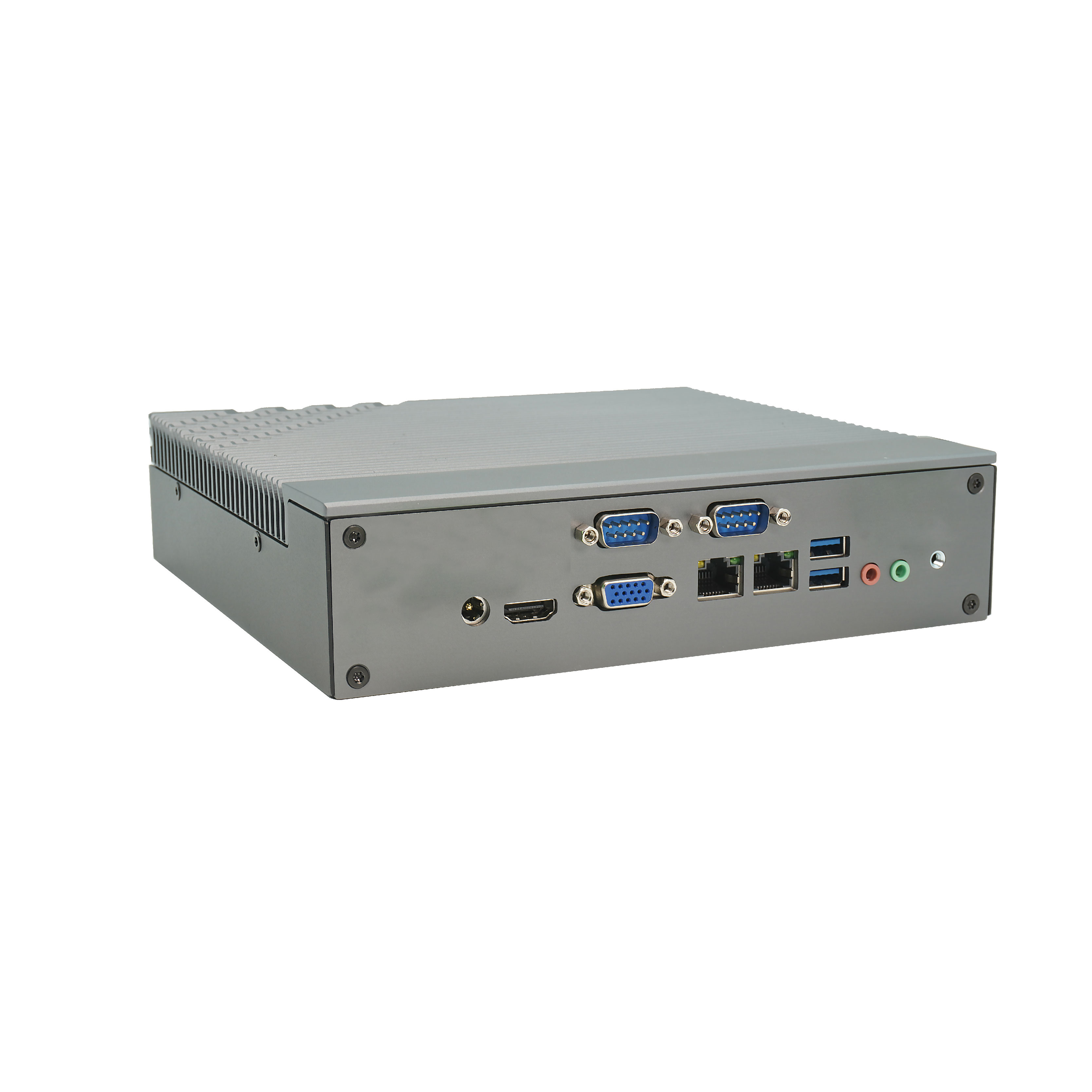

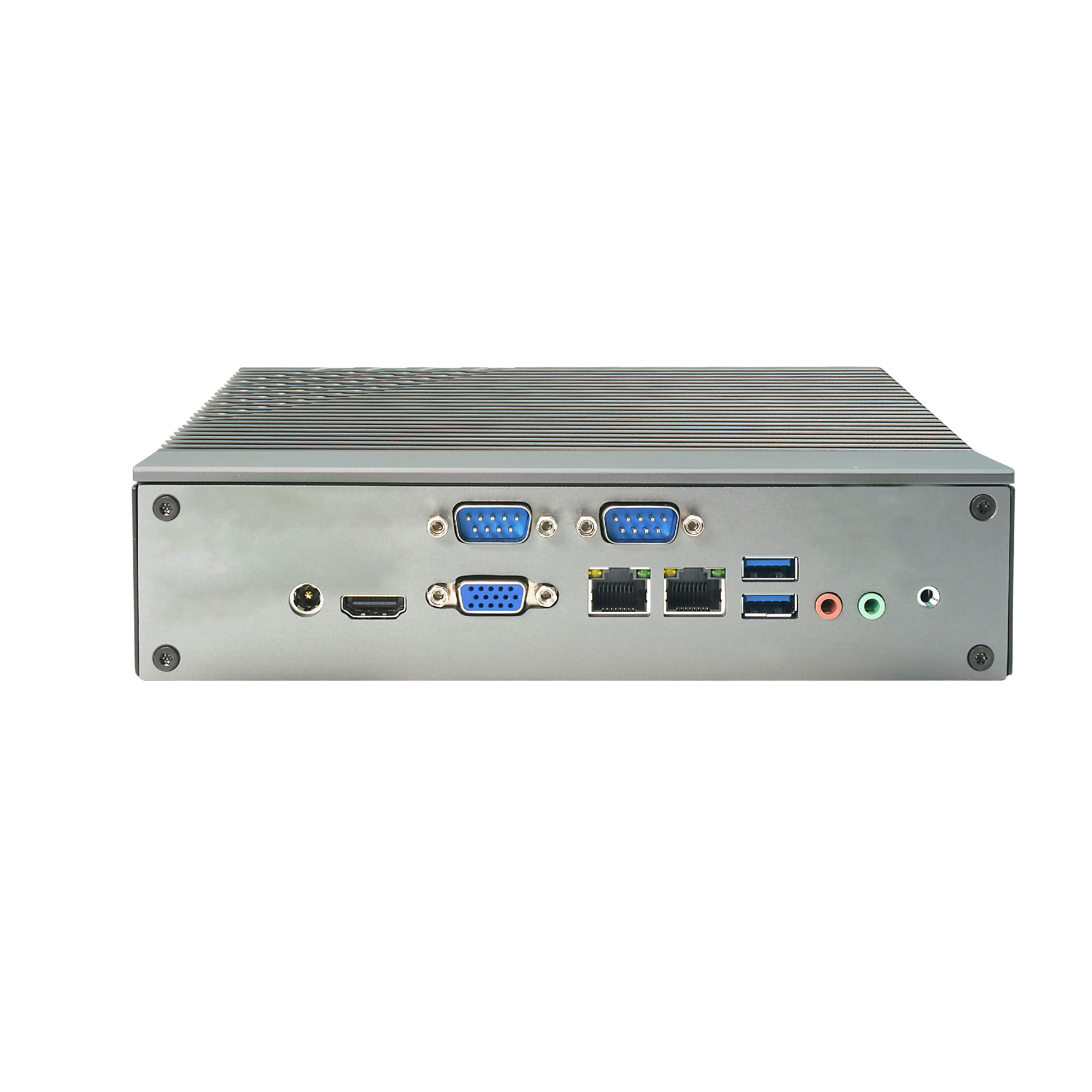

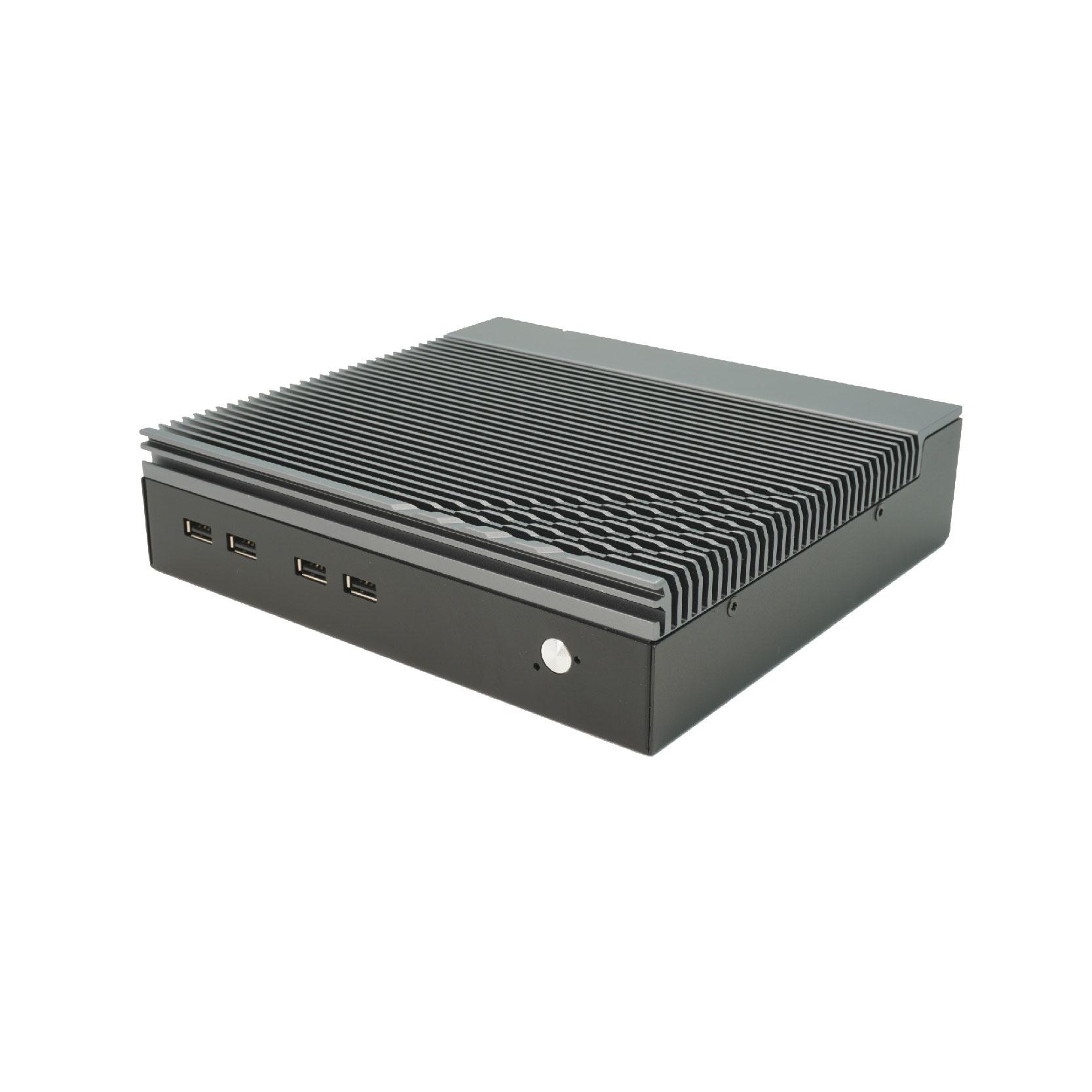

Product Gallery
